All Products > Filing Room Equipment > TF-3 Circular Saw Grinder
No items found.
No items found.
Filing Room Equipment

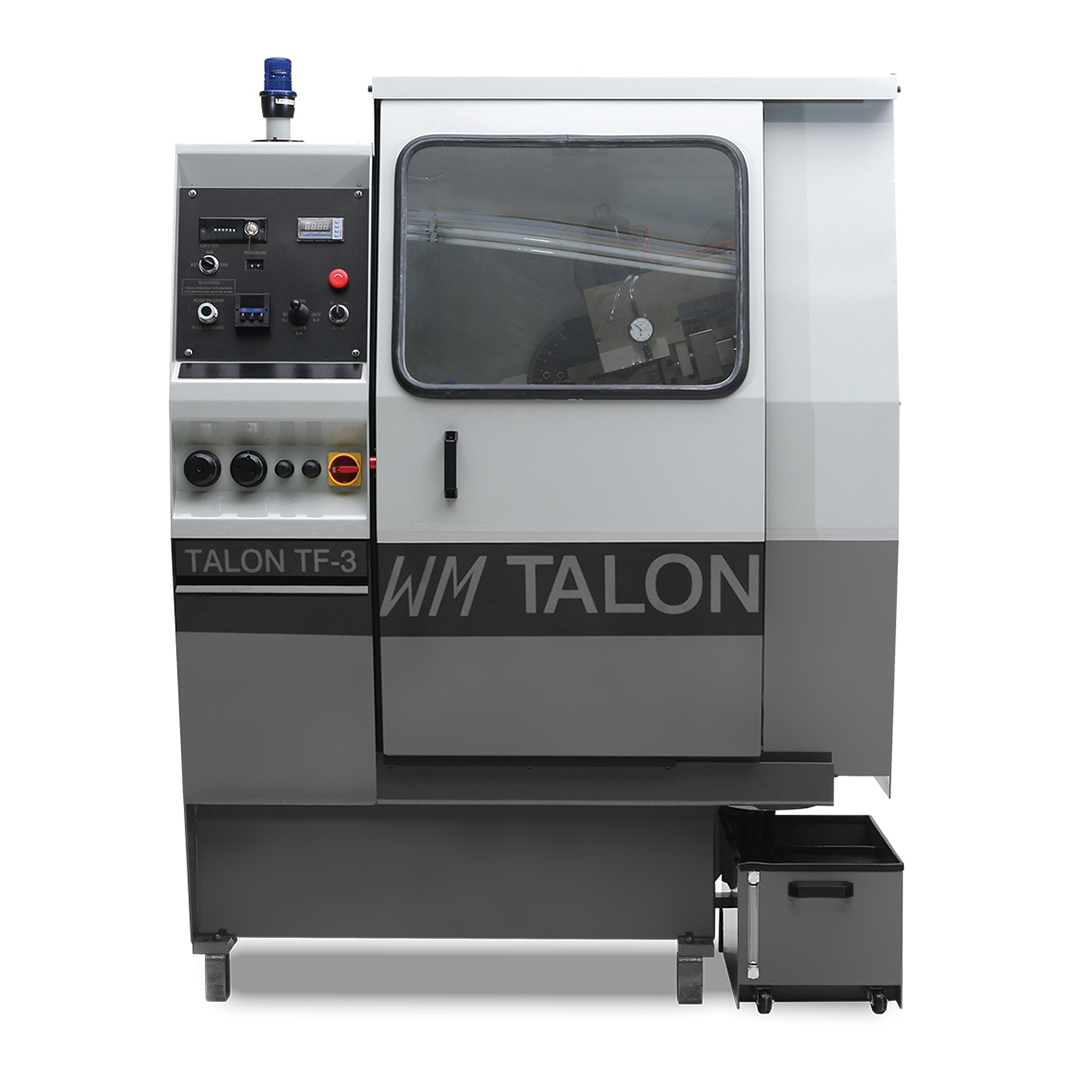

TF-3 Circular Saw Grinder

The TF-3 is purpose-built to be the best circular saw top sharpeners available. Field-proven through years of 24/7 service, it consistently delivers superior performance, exceptional finish, and high accuracy-even at high speeds.

Capable of grinding multiple tooth geometries in one setup, the TF-3 combines massive construction (over 2,000 lbs) with a compact footprint of just 15 square feet. Its central lubrication system reduces maintenance and extends machine life. The precision 2 HP grinding head moves on a robust double-track, multi-truck linear slide system, powered by hydraulic-controlled feed for high accuracy and productivity. Special high-speed programs enable "off carbide" grinding times as low as one second, boosting productivity without compromising grind accuracy or wheel life. The enclosed grind cabinet improves the work environment by containing noise and coolant mist.

Download Brochure (.PDF)

Features

  • 10 HP Tooth Programs
  • 10 GPM Filtered Flood Coolant
  • Totally Enclosed Hood
  • Low Voltage Work Lights
  • Precision 1.7 HP Spindle Motor
  • Dual Precision Saw Clamp
  • Precision Multi-Bearing Spindles
  • Auto Central Lube Unit
  • Enclosed Grind Cabinet
  • External Pick Adjustment
  • Lift-Off Grind Motion
  • Electronic Thickness Adjustment

Specifications

  • Circle Saw Size: 4" to 34"
  • Power Consumption: 1.7 kW
  • Standard: 230V / Single Phase / 50Hz-60Hz
  • Optional: 230V or 460V / Three Phase / 50Hz-60Hz
  • Air Requirement: Clean, dry air @ 80 PSI
  • Machine Weight: Approx. 2,000 lbs
  • Coolant Tank Capacity: 20 gallons
  • Grease Skid Dimensions: 47" x 27" x 32"
  • Max Pack Height: 57"

Specifications
