All Products > Filing Room Equipment > ND Automated Loading
No items found.
No items found.
Filing Room Equipment

ND Automated Loading

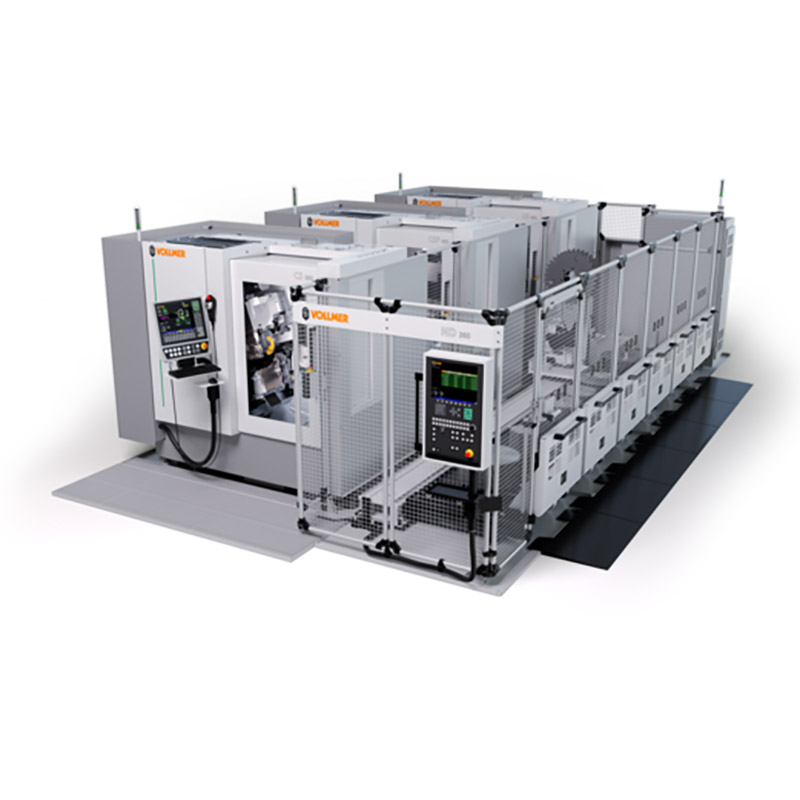

For sawmills and service centers looking to maximize productivity with minimal operator intervention, the Vollmer CS 860 and CSF 860 are fully compatible with the ND series of handling systems-designed for unattended sharpening around the clock. Each ND system uses four CNC-controlled axes and a double-gripper arm to load blades quickly and accurately. Carriage-based loading allows for different blade stacks, batch programming, and mid-cycle reloads-ideal for mixed production runs or overnight operation.

Whether you're sharpening tooth tops, faces, or sides, these machines seamlessly integrate with ND loaders to deliver fully automated grinding with maximum flexibility, precision, and batch control.

Download Brochure (.PDF)

Benefits

  • Fully unattended operation-ideal for lights-out production
  • Flexible setup for single or multi-machine configurations
  • Fast, accurate loading with double gripper systems
  • User-friendly programming via data entry stations
  • Reduces labor requirements while boosting output capacity
  • Compatible with both servicing and production environments

Options

Specifications

Model|Machine Support|Blade Capacity|Blade Diameter Range

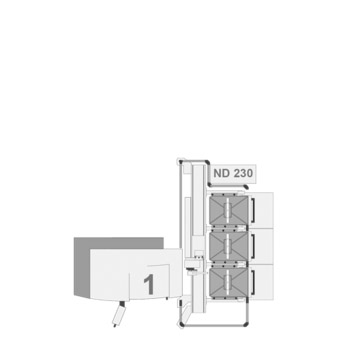

ND 230|1 machine|Up to 250|100 - 630 mm

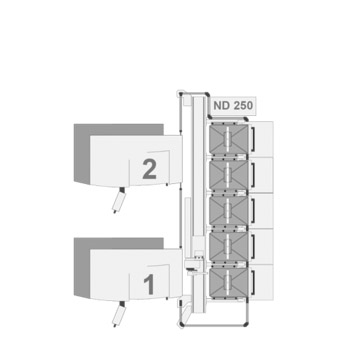

ND 250|Up to 2 machines|Up to 450|100 - 630 mm

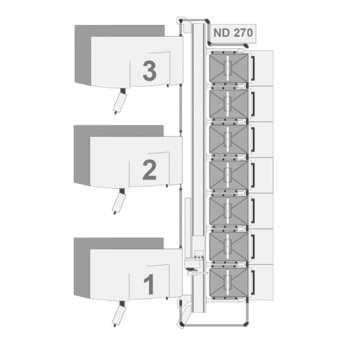

ND 270|Up to 3 machines|Up to 650|100 - 630 mm

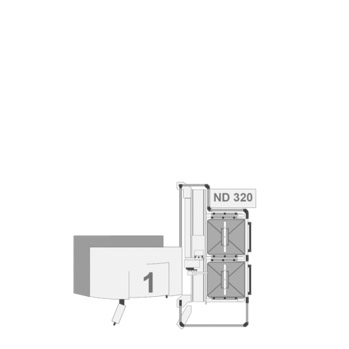

ND 320|1 machine|Up to 150|200 - 840 mm

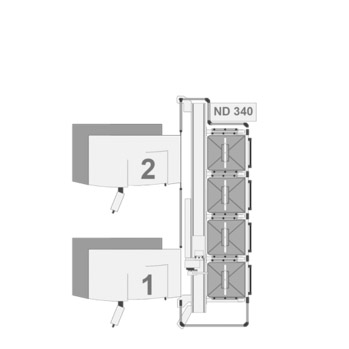

ND 340|Up to 2 machines|Up to 350|200 - 840 mm

ND 360|Up to 3 machines|Up to 550|200 - 840 mm
