All Products > Filing Room Equipment > Kirschner Robot Cart
No items found.
No items found.
Filing Room Equipment

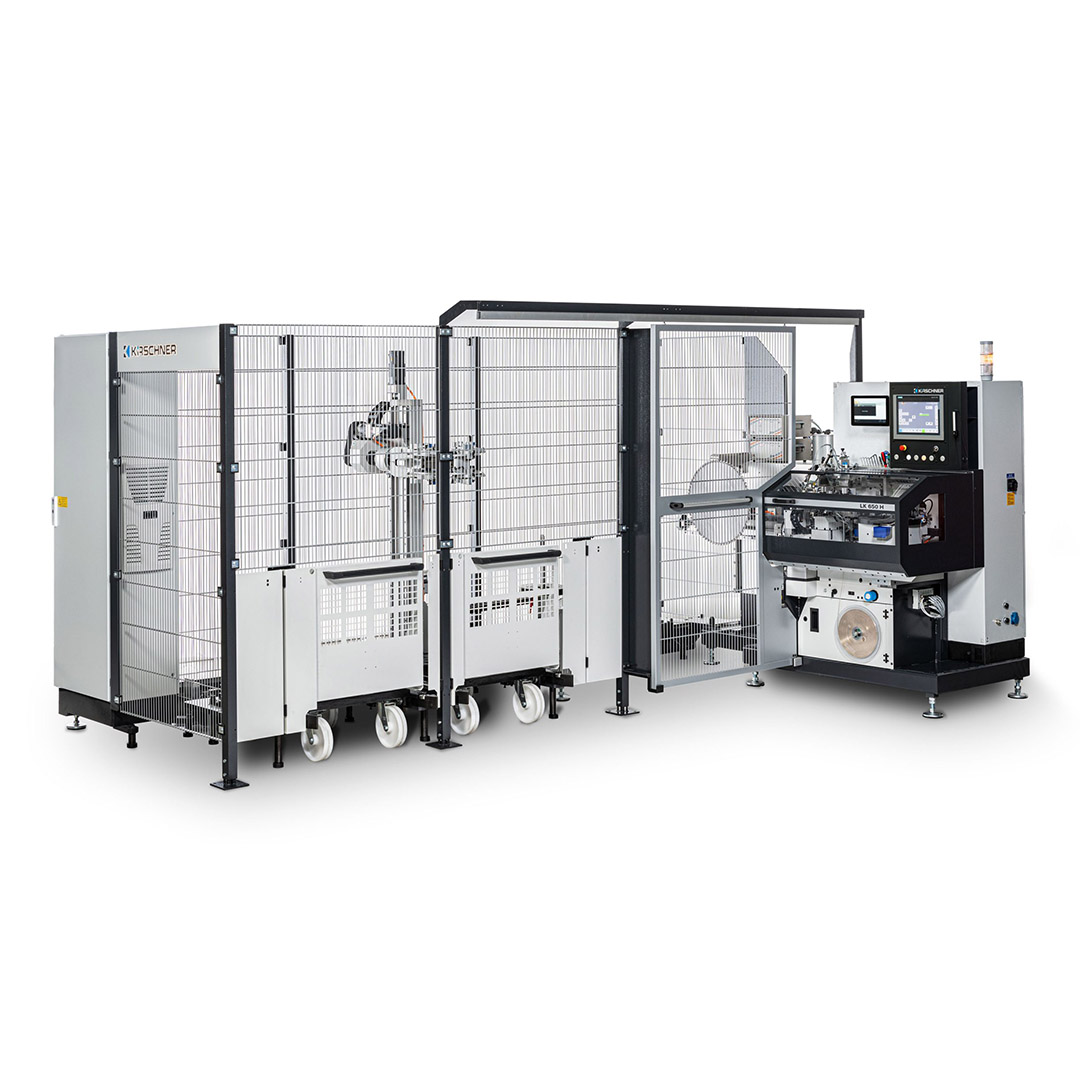

Kirschner Robot Cart

The Kirschner Robot Cart enables fully automatic loading and unloading of circular saw blades for the LK Pro² Kirschner Tipper, turning it into a high-throughput, unattended brazing system ideal for large-scale production.

Equipped with precision servo-driven axes and a dual-arm rotating gripper, this robot system handles blades quickly, safely, and accurately-minimizing manual handling and increasing output capacity. It also supports compatibility with both Kirschner and Vollmer-style transport carts, providing flexibility across your sharpening and tipping operations.

Download Brochure (.PDF)

Features

  • Complete robotic loading/unloading automation for the LK Pro²
  • High-precision servo-controlled framework and linear rail system
  • 180° double-arm turning system with magnetic grippers
  • Accepts both Kirschner (B63/B84) and Vollmer (ND 270/320) cart formats
  • Standard mandrel length: 320 mm (Vollmer compatible)
  • Optional intermediate plate handling to prevent tooth-on-tooth stacking
  • Fully enclosed safety frame with access door (UVV-DIN compliant)
  • Optional loader extension available for future expansion

Benefits

  • Enables unattended brazing operations with consistent throughput
  • Reduces manual labor and minimizes saw handling errors
  • Compatible with mixed cart systems for integration flexibility
  • Protects saw teeth during unloading with off-set stacking
  • Future-proof design with optional expansion capability

Specifications

Specifications

Saw Diameter Range|3.9" - 24.8" (standard carts)

Saw Diameter Range|3.9" - 33" (large carts, optional)

Compatible Systems|Kirschner B63/B84, Vollmer ND 270/320

Mandrel Length|320 mm (standard)

Machine Dimensions|Approx. 97" W x 183" D x 85" H

Weight|Approx. 4,409 lbs (2,000 kg)

Power & Pneumatics|Fully integrated electrical & air systems
