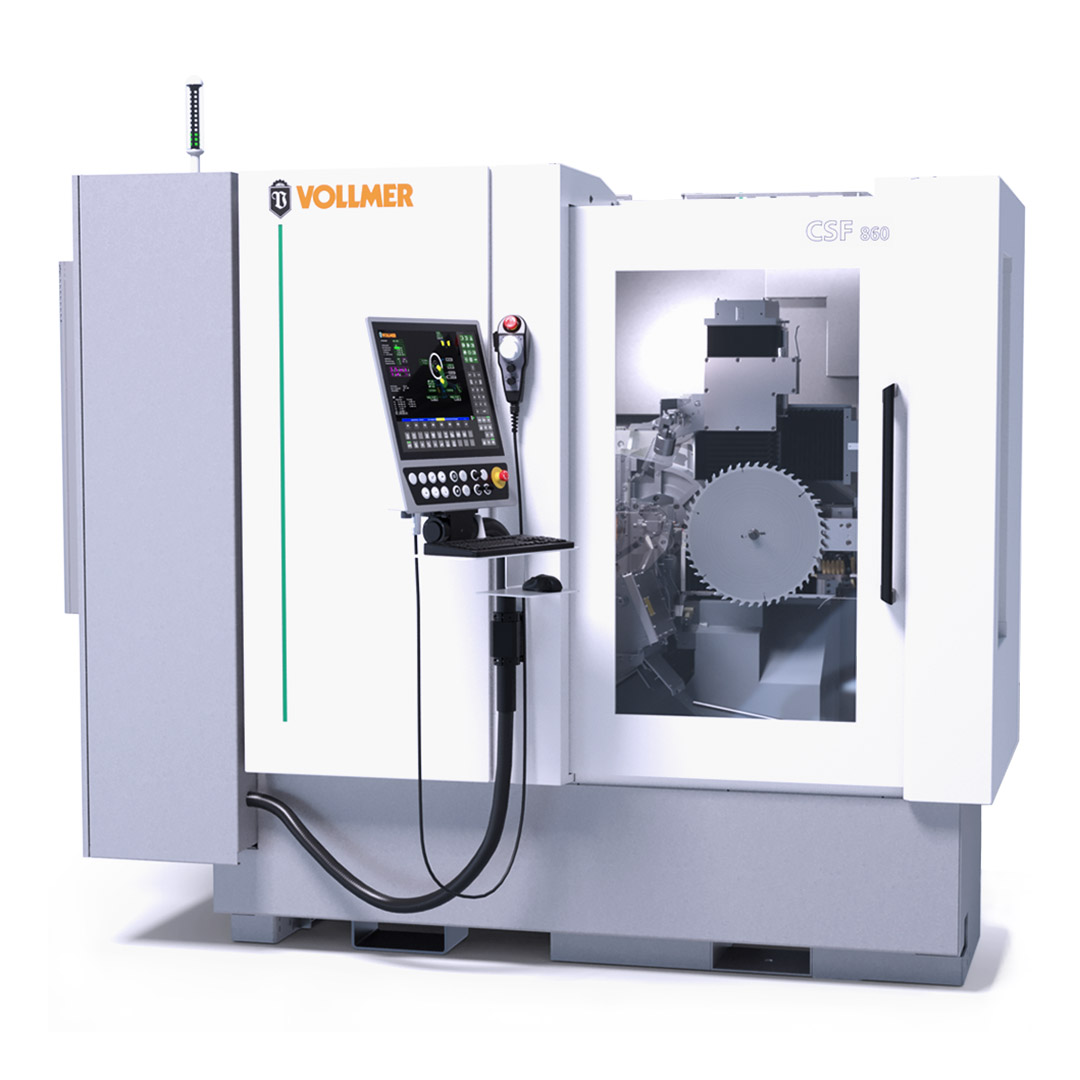

CSF 860
The Vollmer CSF 860 is a fully CNC-controlled side grinder designed to deliver automated, high-precision sharpening of carbide-tipped circular saw blades. With 7-axis servo kinematics, the CSF 860 ensures complete machining of tooth sides with exceptional consistency, speed, and flexibility-making it ideal for sawmills, sharpening centers, and tool manufacturers with high daily throughput.
Built on a compact, stable monoblock frame, and featuring advanced measurement systems, digital compensation, and ND automation compatibility, the CSF 860 is optimized for round-the-clock operation with minimal setup time and maximum control.
Designed for blades from 80 mm to 860 mm (3" to 34") in diameter.
Specifications
Specifications
Blade Diameter Range|80 - 860 mm (3.15" - 33.85")
Axes|7 CNC-controlled
Machining Focus|Side grinding (all geometries)
Grinding Style|Oscillation standard
Tooth Pitch Detection|Automatic
Repaired/Broken Tooth Sensing|Automatic
Measurement Systems|3D sensor, acoustic sensor, measurement cube
Multi-Surface Program|Up to 90 surfaces / 30 teeth per cycle
Automation Compatibility|Vollmer ND Systems (up to 3 machines, 650 blades)
Coolant System|Water-based, no tank needed
Interface|Touchscreen + manual override
Connectivity|IoT Gateway included
Maintenance|Pneumatic system, no hydraulics, auto-lubrication
