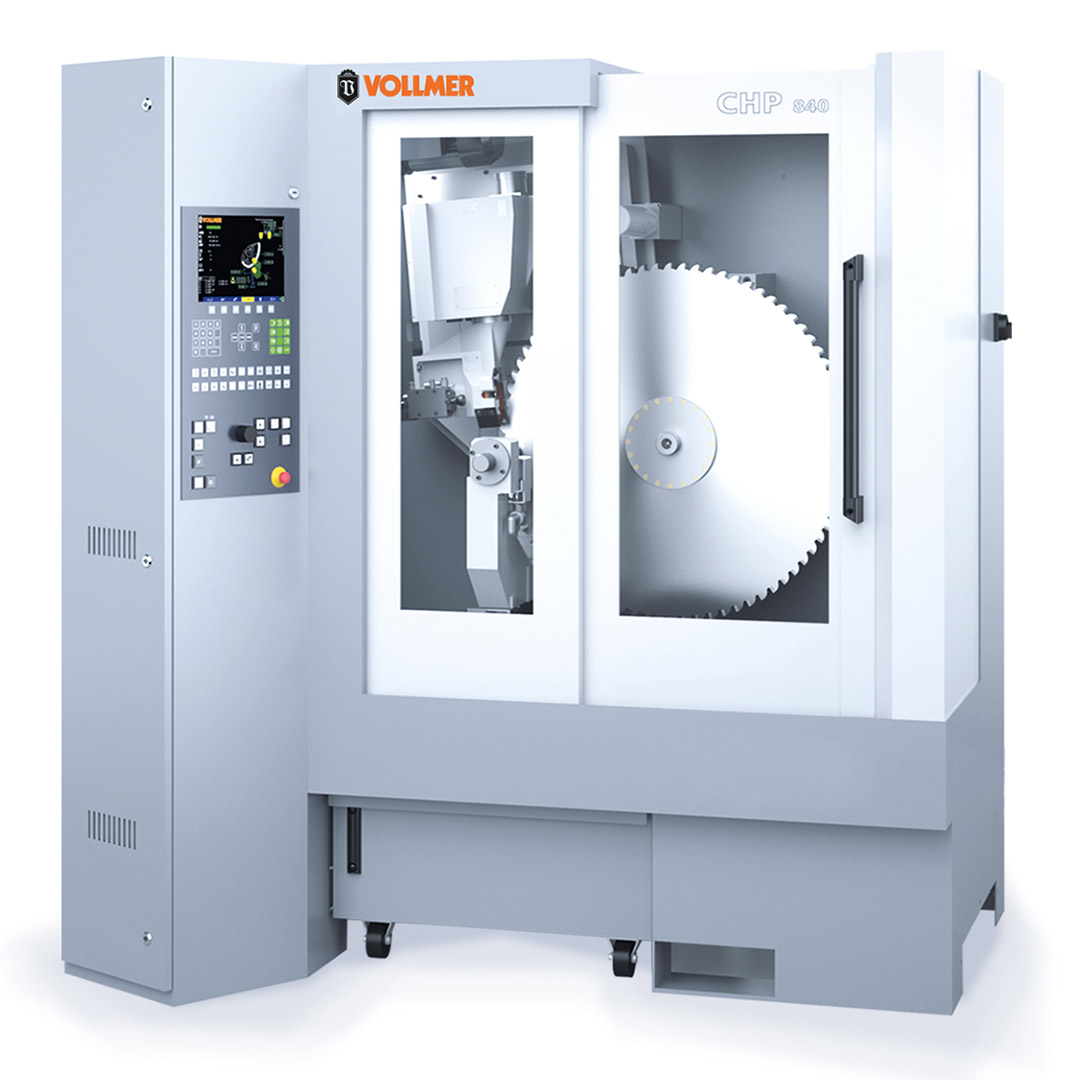

CHP 840
The Vollmer CHP 840 and CHP 1300 are robust CNC grinders engineered for the precise sharpening of carbide-tipped circular saw blades used in a wide range of applications-from sawmill and furniture production to non-ferrous metal and plastic processing.
Designed for performance and durability, the CHP series features four fully CNC-controlled axes to grind all common tooth geometries in a single cycle-including axial angles and group toothing. With oscillation grinding as standard, the CHP series removes material quickly and cleanly, making it ideal for both production sharpening and repair work.
CHP 840 handles blades up to 33" (840 mm) while the CHP 1300 expands capacity up to 51" (1300 mm).
With sensor-based feed systems, wide-opening clamping, and optional features for tooth pitches up to 180 mm, the CHP series is ready to meet your sharpening demands.
Specifications
Specifications
Model|CHP 840|CHP 1300
Blade Capacity|Up to 33" (840 mm)|Up to 51" (1300 mm)
Axes|4 CNC-controlled|4 CNC-controlled
Tooth Geometry|Standard, axial, group profiles|Standard, axial, group profiles
Grinding Style|Oscillation standard|Oscillation standard
Hook and Clearance Angle|Motorized with digital detection|Motorized with digital detection
Clamping System|Wide-opening, collar-compatible|Wide-opening, collar-compatible
Optional Features|Hollow-face grinding, extra feed pawl|Same as CHP 840
Coolant Options|Water or oil-based systems|Water or oil-based systems
Interface|Touchscreen + handwheel|Touchscreen + handwheel
Maintenance|Hydraulic-free, auto lubrication|Hydraulic-free, auto lubrication
