All Products > Filing Room Equipment > CHC 840
No items found.
No items found.
Filing Room Equipment

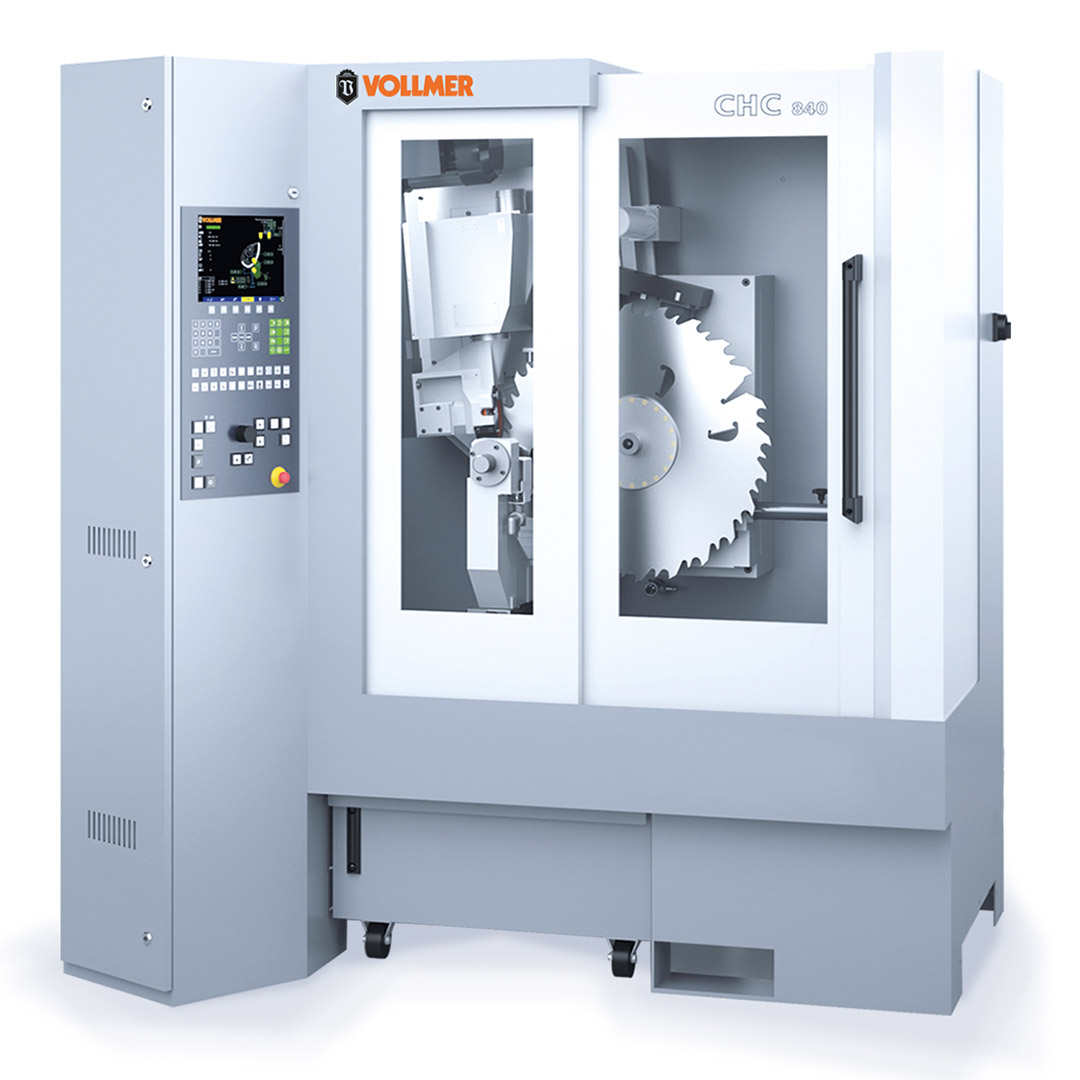

CHC 840

The Vollmer CHC 840 and CHC 1300 are high-performance CNC grinders built for the precise sharpening of carbide-tipped circular saw blades-perfectly suited for sawmill applications. With four fully CNC-controlled axes and advanced oscillation grinding, the CHC series machines all standard tooth geometries in a single cycle, including saws with axial angles or group toothing. Whether you're sharpening saws for softwood, hardwood, plastic, or composite material, the CHC provides unmatched consistency and flexibility.

CHC 840 handles blades up to 33" (840 mm) while the CHC 1300 expands capacity up to 51" (1300 mm)

Both models are designed for low maintenance with no hydraulic systems, a fully enclosed cabinet, and automatic central lubrication-making them ideal for sharpening rooms looking to reduce downtime and increase output.

Burton Mill Solutions can help configure the ideal CHC machine for your sharpening workflow.

Download Brochure (.PDF)

Features

  • Four-axis CNC control for face and top grinding in one cycle
  • Oscillation grinding for high material removal
  • Digital hook and clearance angle detection
  • Large clamping range for saws with collars or reinforcing rings
  • Optional feed pawl for tooth pitches up to 180 mm
  • Optional hollow-face grinding unit
  • Multifunction handwheel for manual axis movement and speed control
  • Fully enclosed design with minimal maintenance required
  • Supports oil or water-based coolant systems

Benefits

The CHC 840 and 1300 offer production-grade sharpening with minimal setup and operator input. Digital angle adjustment, sensor-based feed control, and onboard memory for up to 99 sharpening programs make it easy to use while maintaining precision at scale. Whether you're running small batches or high volumes, CHC delivers fast turnarounds and repeatable results.

Specifications

Specifications

Blade Capacity|CHC840 Up to 33" (840 mm) /CHC1300 up to 51" (1300 mm)

Axes|4 fully CNC-controlled

Tooth Geometry|All common geometries incl. axial/group

Grinding Style|Oscillation standard

Hook and Clearance Angle|Motorized with digital detection

Coolant Options|Water-based or oil coolant compatible

Optional Features|Hollow-face grinding, extra feed pawl

Clamping System|Wide-opening, collar-compatible

Operation Interface|Touchscreen + multifunction handwheel

Maintenance|Hydraulic-free, auto lubrication
