All Products > Filing Room Equipment > 3-10-C Circular Saw Stretcher Roll
No items found.
No items found.
Filing Room Equipment

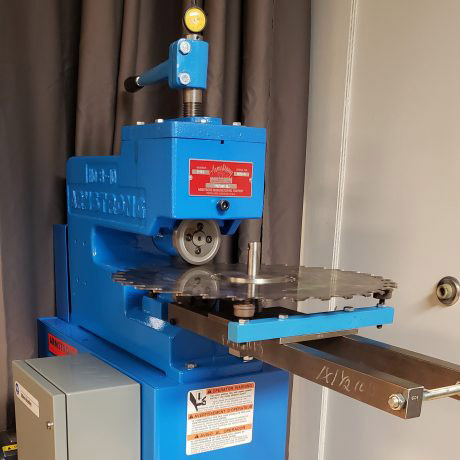

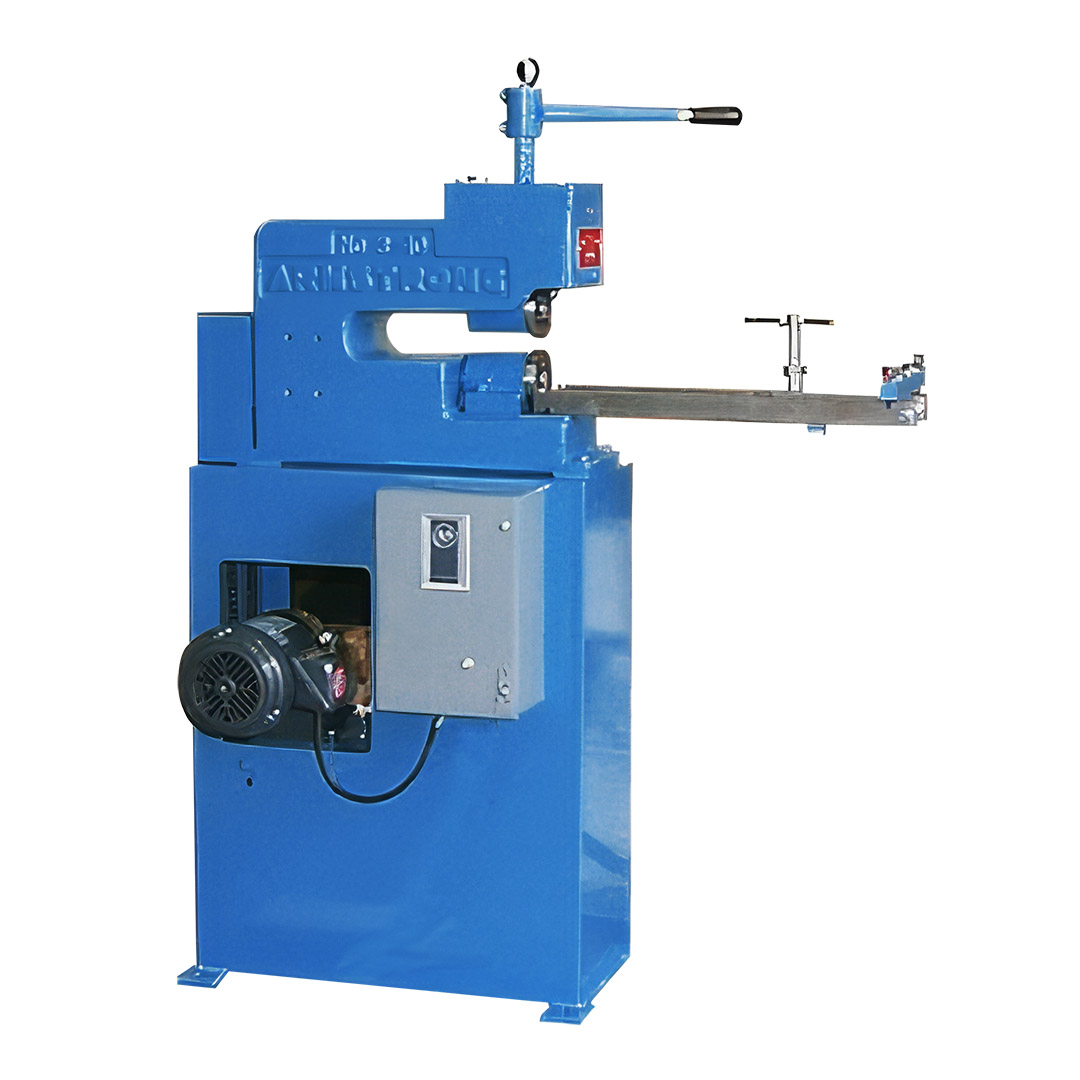

3-10-C Circular Saw Stretcher Roll

The Armstrong 3-10-C Stretcher Roll is a heavy-duty, precision-built machine engineered to tension circular saws up to 36" in diameter with uniform and repeatable accuracy. Designed for filing rooms servicing modern thin-kerf and large-diameter saws alike, the 3-10-C eliminates hammer marks while delivering consistent crown profiles-ensuring maximum saw performance and blade life.

Equipped with a 1 HP gearhead motor, eccentric mandrel adjustment, and a convenient foot pedal control, this machine provides smooth and uniform tensioning from the center of the saw to the gullet line. The standard four-step centering bushing allows flexible handling of various saw bore sizes, while rugged construction ensures years of dependable service.

Download Brochure (.PDF)

Features

  • Accommodates saws up to 36" (92 cm) in diameter
  • Tensions saws to within 7" (18 cm) of the eye
  • Eccentric mandrel allows for either concentric or spiral crown formation
  • Uniform stretcher roll action eliminates hammer marks
  • Foot pedal control for easy operation
  • 1 HP (0.75 kW) gearhead motor for powerful and reliable feed
  • Heavy-duty cast iron or steel frame with anti-friction bearings
  • Rolls at a standard feed of 40 ft/min (12 m/min)
  • Adjustable saw carriage for accurate roll positioning

Benefits

  • Improves accuracy and consistency in saw tensioning
  • Prevents blade damage caused by uneven hammering
  • Ideal for thin-kerf saws used in high-speed multi-rip machines
  • Ergonomic and intuitive design reduces operator fatigue
  • Built to last in high-use industrial filing rooms

Options

  • Linear Bearing Slide Carriage - Integrated leveling roll, smooth travel, solid anodized aluminum construction
  • Stepped Saw Centering Bushings - Includes 1", 1-1/8", 1-1/4", 1-3/8"; other sizes available
  • Dial Indicating Pressure Screw - Displays applied pressure for consistency and training
  • Leveling Attachment - Quick-install option for leveling without adding tension
  • Stretcher Rolls - Standard 4" crowned rolls included
  • Leveling Rolls - Optional concave leveling roll (Part #7337) available

Specifications

Specifications

Saw Diameter Capacity|Up to 36" (92 cm)

Tensioning Distance to Eye|7" (18 cm)

Max Saw Gauge|4 gauge (.238" / 6.04 mm)

Feed Speed|40 ft/min (12 m/min)

Motor|1 HP gearhead (0.75 kW)

Height Overall|58" (147.3 cm)

Floor Space|21" x 41" (53.3 cm x 104.1 cm)

Crate Weight (Truck/Ocean)|700-800 lbs (320-370 kg)

Shipping Volume|53 cu. ft. (1.5 m³)
