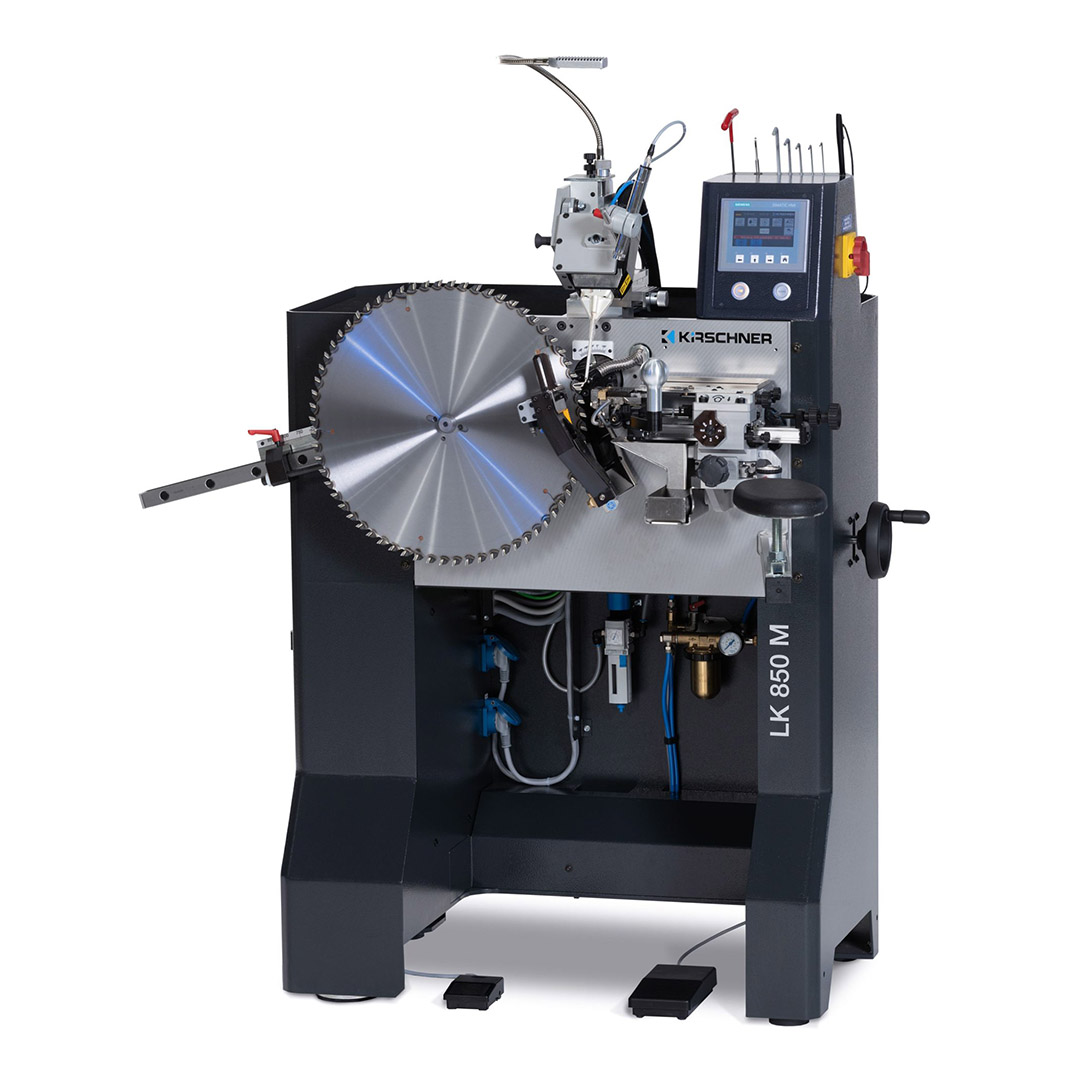

LK 850 M Tipper
The LK 850 M Kirschner Tipper is a semi-automatic tipping machine designed for precise brazing of pre-tinned carbide tips. Engineered for filing rooms handling repair work or small production batches, the LK 850 M combines high positioning accuracy with quick setup and intuitive operation.
The machine delivers perfect centering and controlled heat application, producing high-strength brazed joints with minimal thermal distortion. With features like manual tip loading, servo-driven gripper control, and multi-mode processing for brazing, annealing, or tip removal, the LK 850 M is a compact, CE-compliant solution for professional-grade saw maintenance.
Specifications
Specifications
Saw Diameter Range|3.9" to 33.5" (optional up to 43.3")
Hook Angle|-15° to +35°
Axis Angle|-20° to +20° (optional)
Tip Width Range|0.079" to 0.354"
Tip Length Range|0.138" to 0.512"
HF Power|CEIA 3.5 kW (optional 5.6 kW)
Electrical Load|180-260 V / N / PE; 50/60 Hz, 4 kVA
Pneumatics|6 bar
Machine Dimensions|Approx. 62" W x 35" D x 62" H
Weight|Approx. 794 lbs
