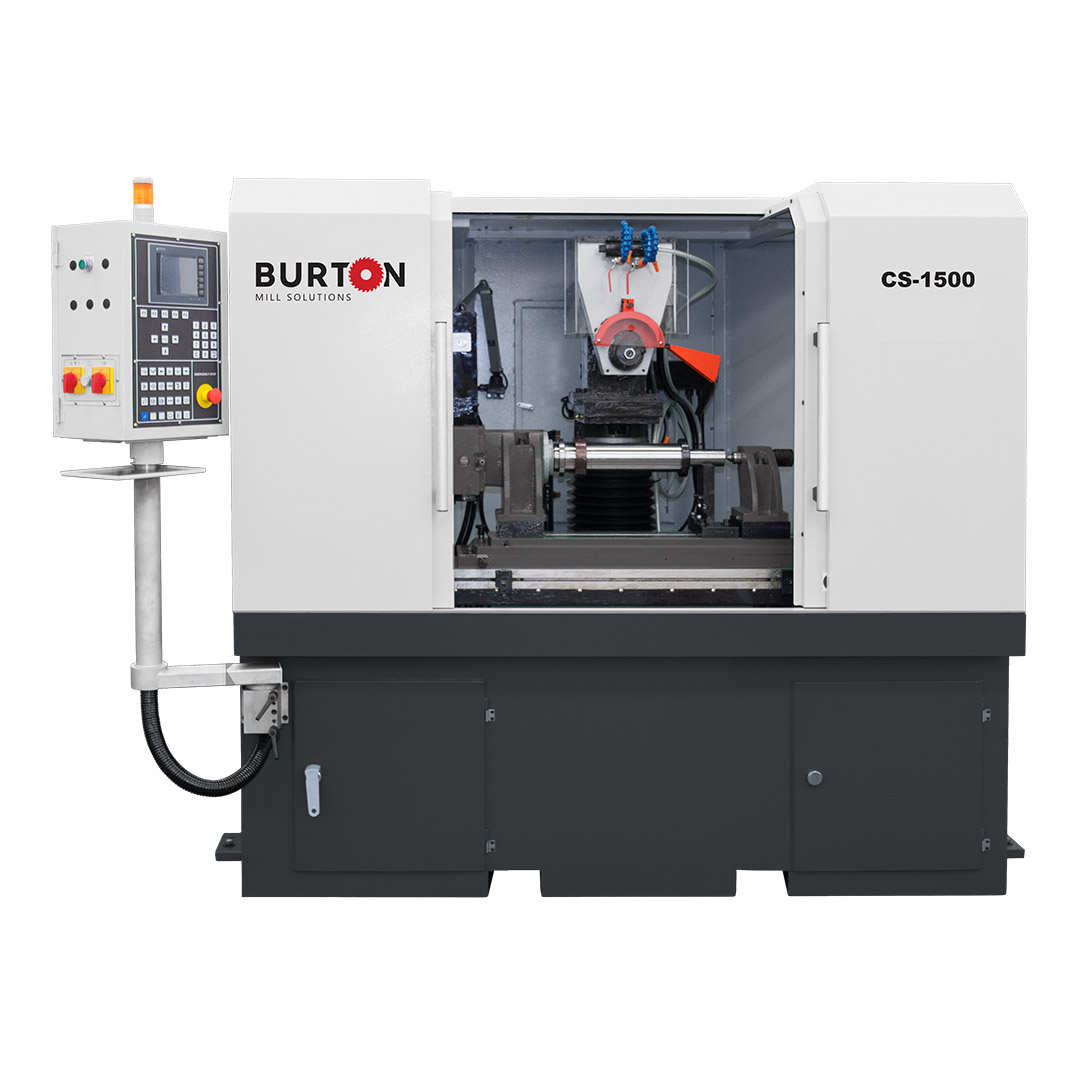

• Fully enclosed to separate the operator from hazardous conditions, creating a safer shop environment and reducing the risk of injuries
• Integrated mist collection allows for efficient recycling of coolant, reducing material costs and limiting harmful exposure to operator

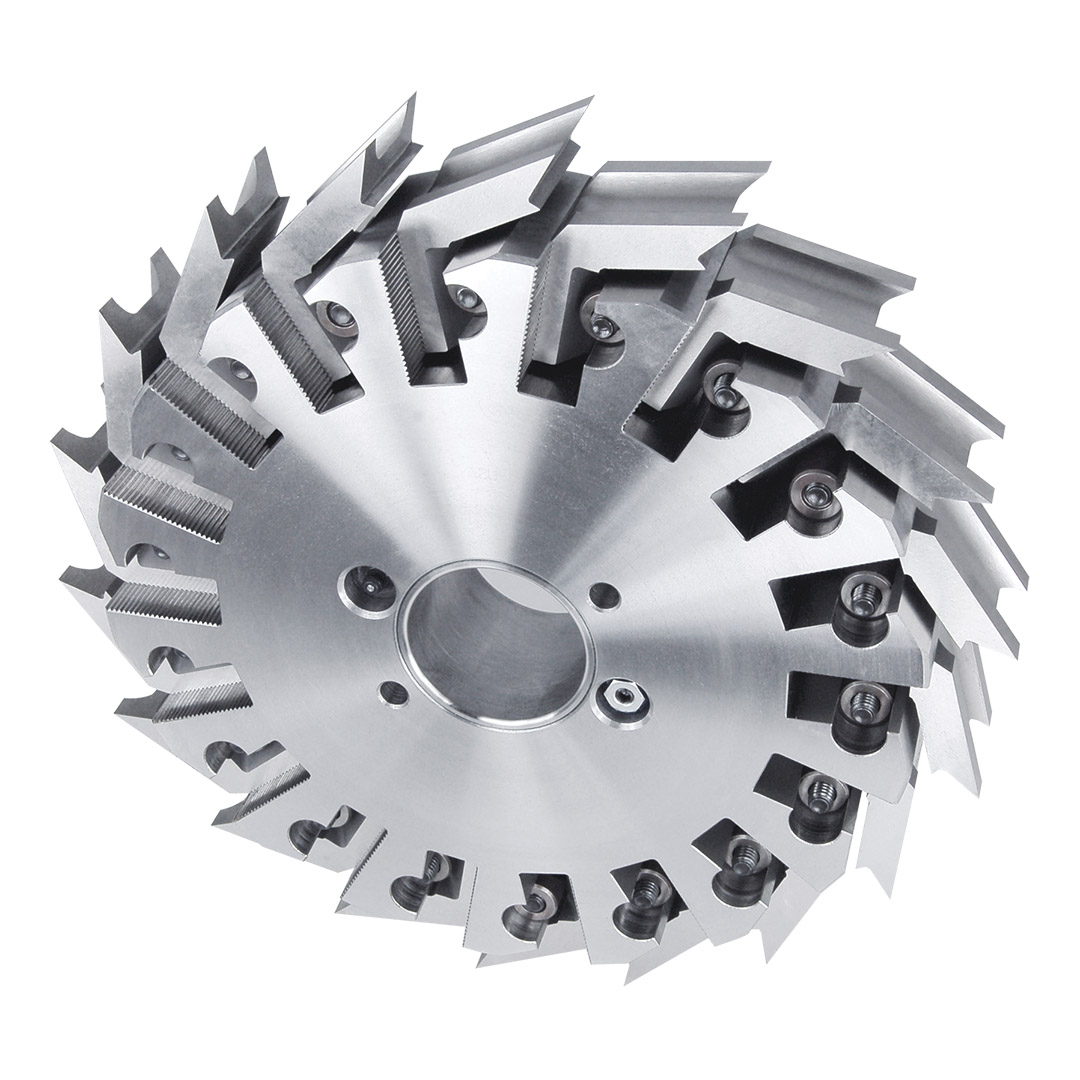

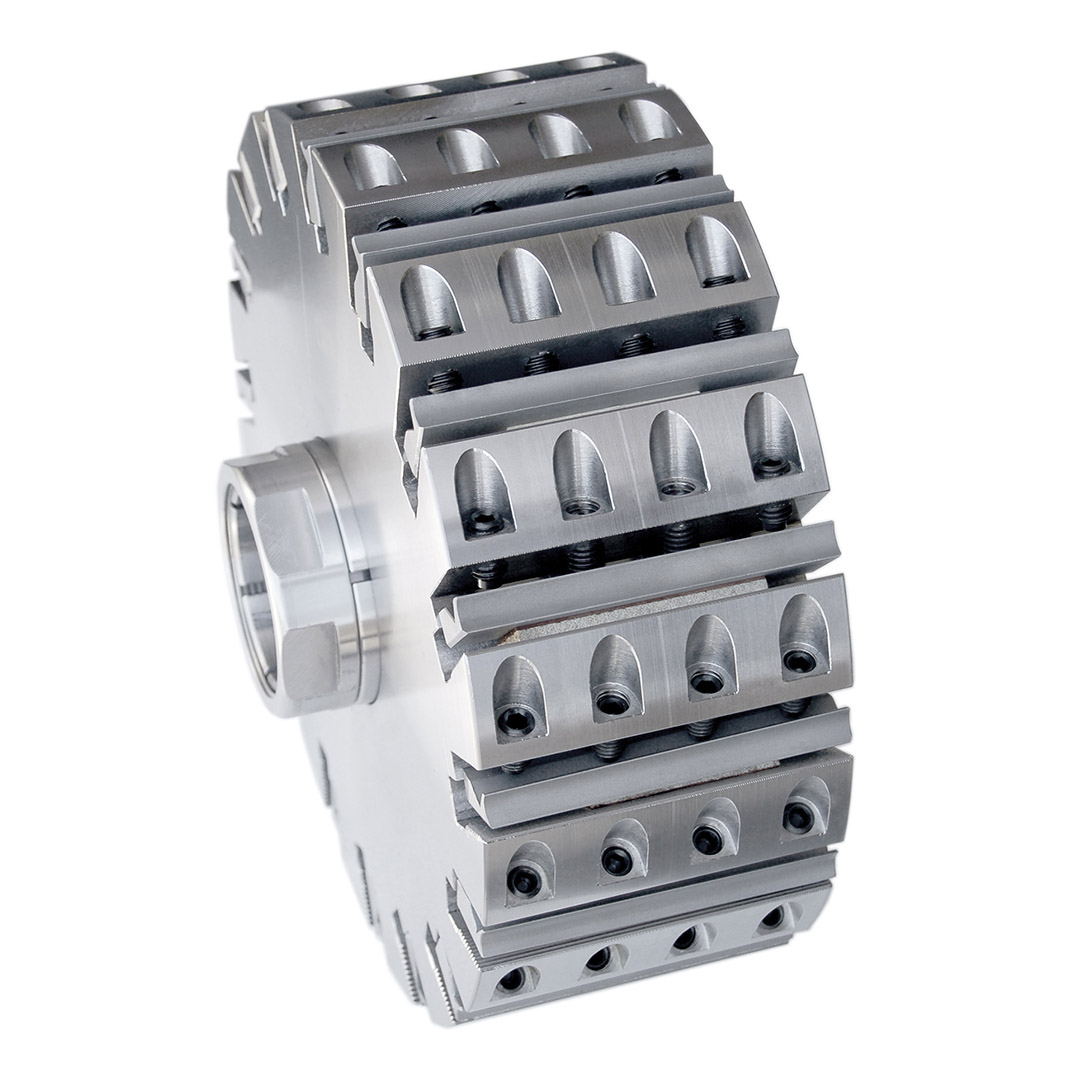

• Accurate CNC controlled grinding of cutterheads resulting in superior planer surfacing
• 4-axis motion with large capacity allows for grinding of many sizes and types of cutterheads, eliminating the need for additional equipment and valuable floorspace.
• Automated cycles allow operator to focus on other tasks, increasing overall throughput
• Industrial touchscreen interface allow for quick and easy machine adjustments, freeing operator for other tasks

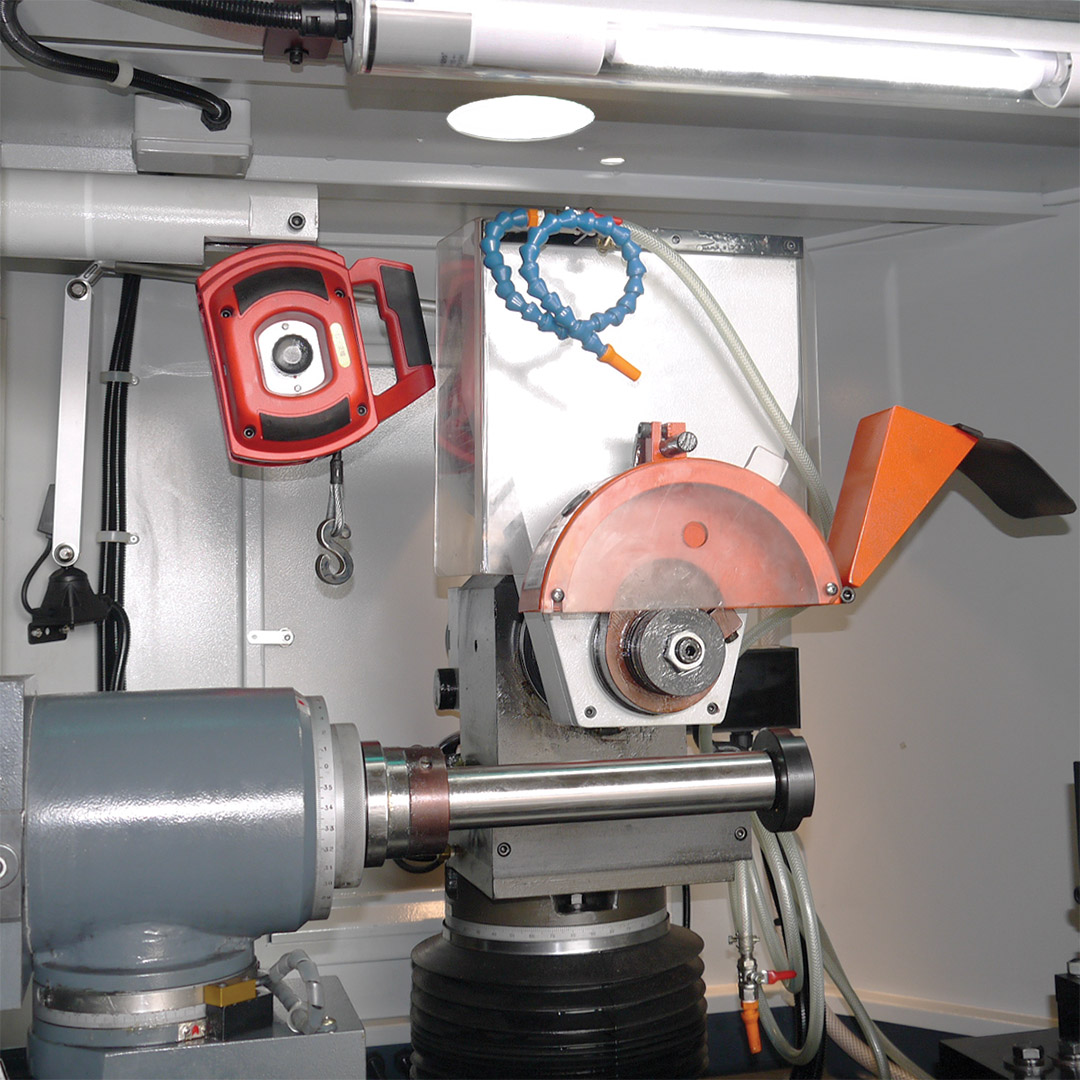

• Optional crane arm for moving heavy cutterheads, reducing operator strain and creating a safer working environment

Standard Accessories

The CS-1500 comes equipped with everything needed to get started with automated grinding operations.

• CBN wheel (Dia x W x Bore Dia): 175 mm x 17 mm x 20 mm (6.9" x 0.67" x 0.79")
• Automatic dividing head and tailstock
• Cutter spindle: Diameter of your choice x 13" (330 mm)
• Toolbox
• 10L of grinding coolant

• Grinding capacity (Dia x W): 397 mm x 330 mm (15-5/8" x 13")
• Grinding accuracy: 0.025 mm (0.001")
• Max worktable length: 400 mm (15-3/4")
• Grinding wheel speed: 3000 RPM (60 Hz)
• Grinding wheel motor: 0.75 kW (5 HP)
• Cooling system motor: 0.1kW (1/8 HP)
• Worktable: Ball screw + 400W servo
• Dividing head: 400W servo
• Vertical up/down: 800W motor
• Feeding: 400W servo
• Gross machine weight: 1815 kg (4000 lbs)
