• Fully CNC-controlled with 8 servo axes
• Oscillation grinding for high material removal
• Automatic tooth pitch detection and broken/repaired tooth recognition
• Single-pass machining of all surfaces (top, face, and advanced geometries)
• User-configurable grinding path optimization and cutting speed adjustment
• Three integrated measuring systems (3D sensor, acoustic sensor, measurement cube)
• User-friendly touchscreen interface with manual override control
• Compatible with water-based coolant systems (no tank required)
• Pneumatic auxiliary functions - no hydraulics for cleaner operation
• Built-in IoT gateway for Industry 4.0 data connectivity

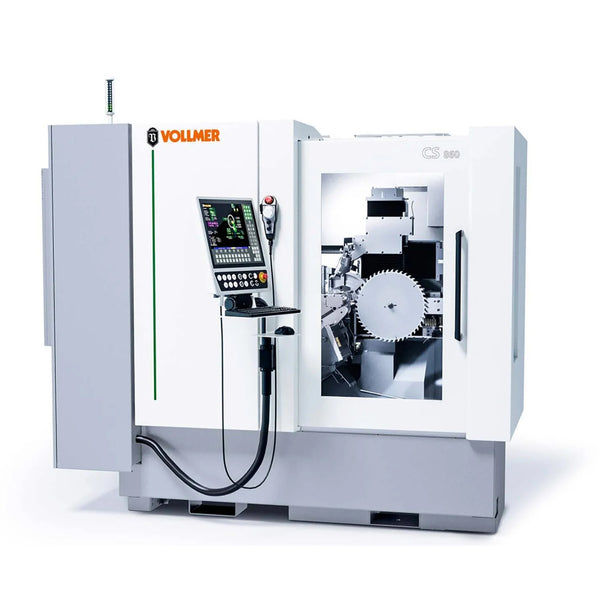

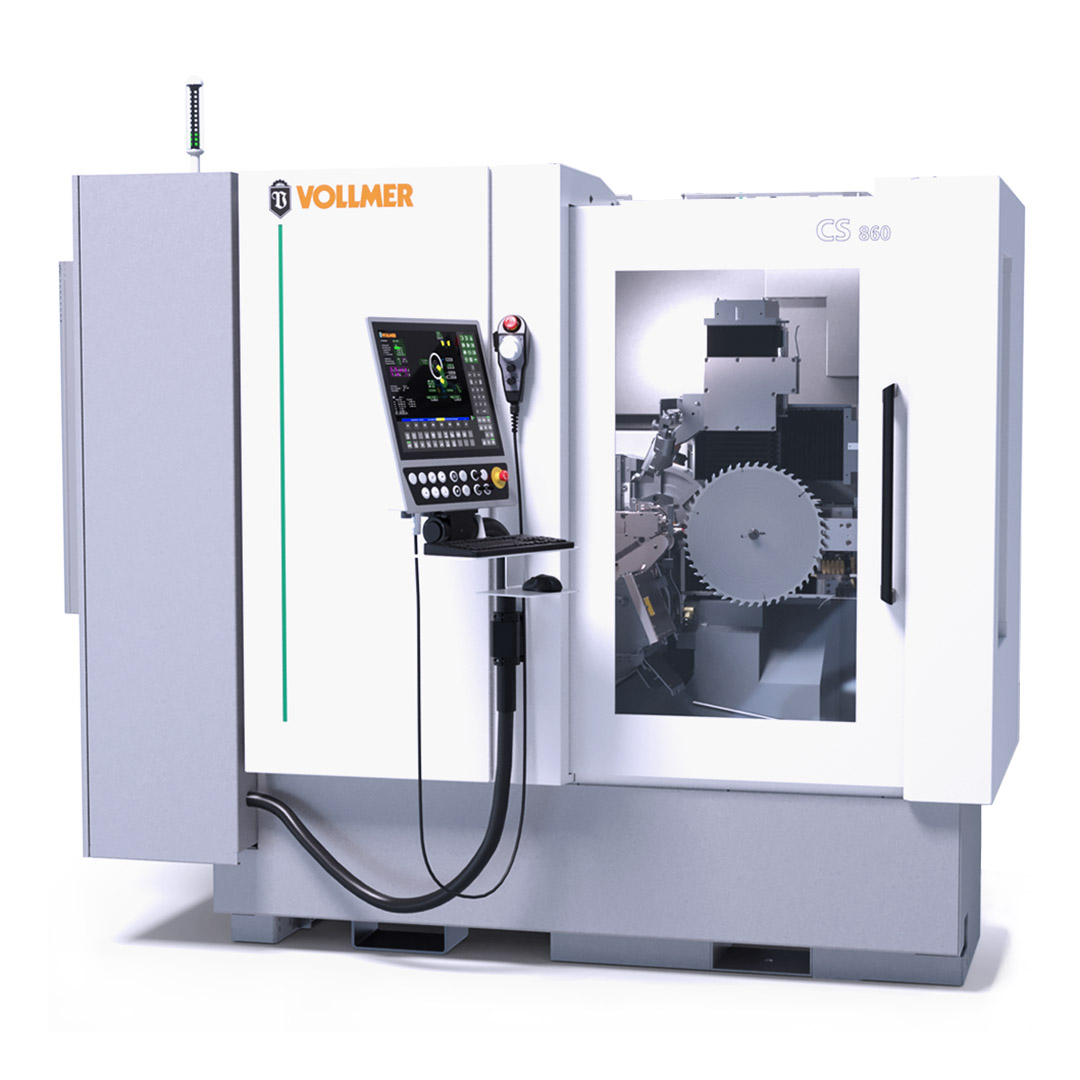

The CS 860 is designed for continuous, unattended grinding. Whether you're processing mixed batches, single saws, or blades with repaired teeth, the machine's smart automation and precision tools handle each job with minimal setup and high repeatability.

The CS 860 also integrates seamlessly with Vollmer's ND Handling Systems, allowing up to three machines to be fed automatically from loading carriages holding up to 650 blades. Run shifts overnight or 24/7 with confidence and accuracy.

With outstanding accessibility, advanced diagnostics, and a design built around ease of service, the CS 860 is ideal for sharpening operations that demand flexibility, performance, and reliability at scale.
